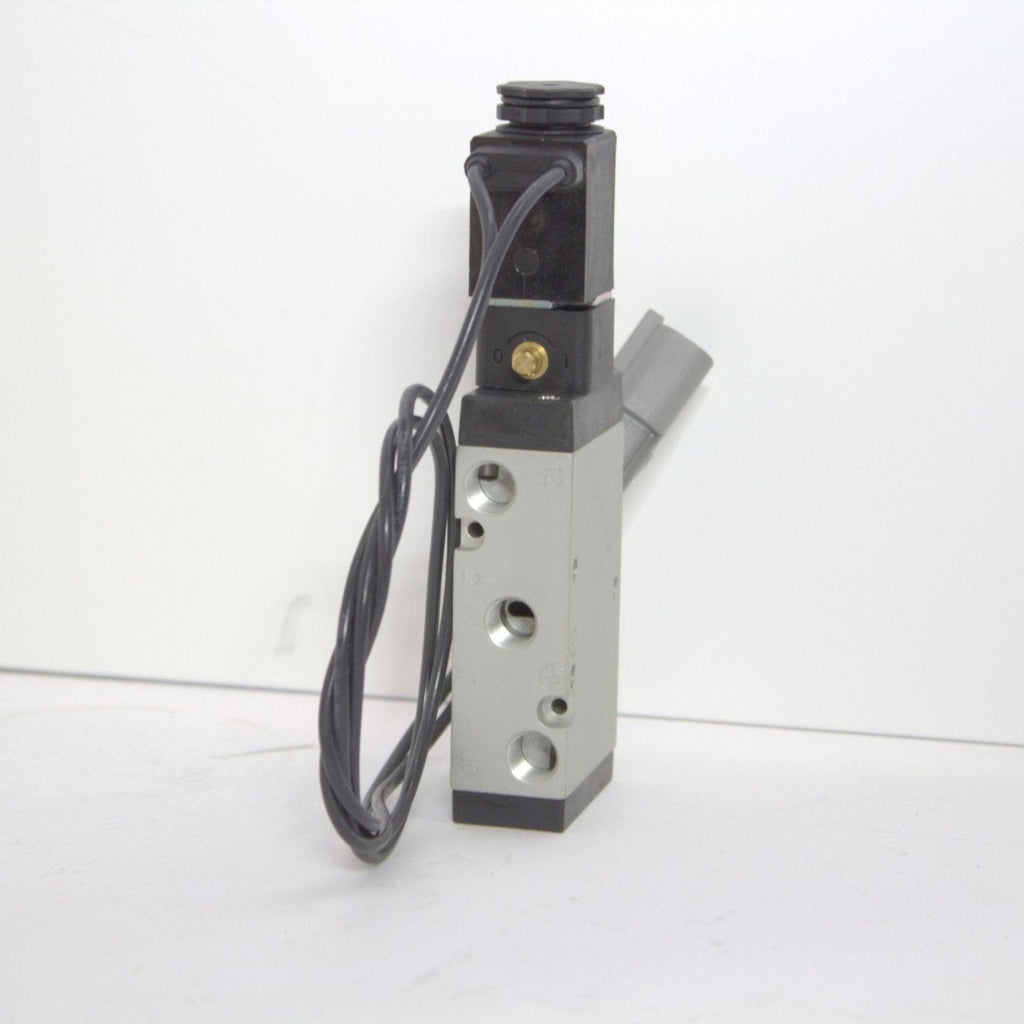

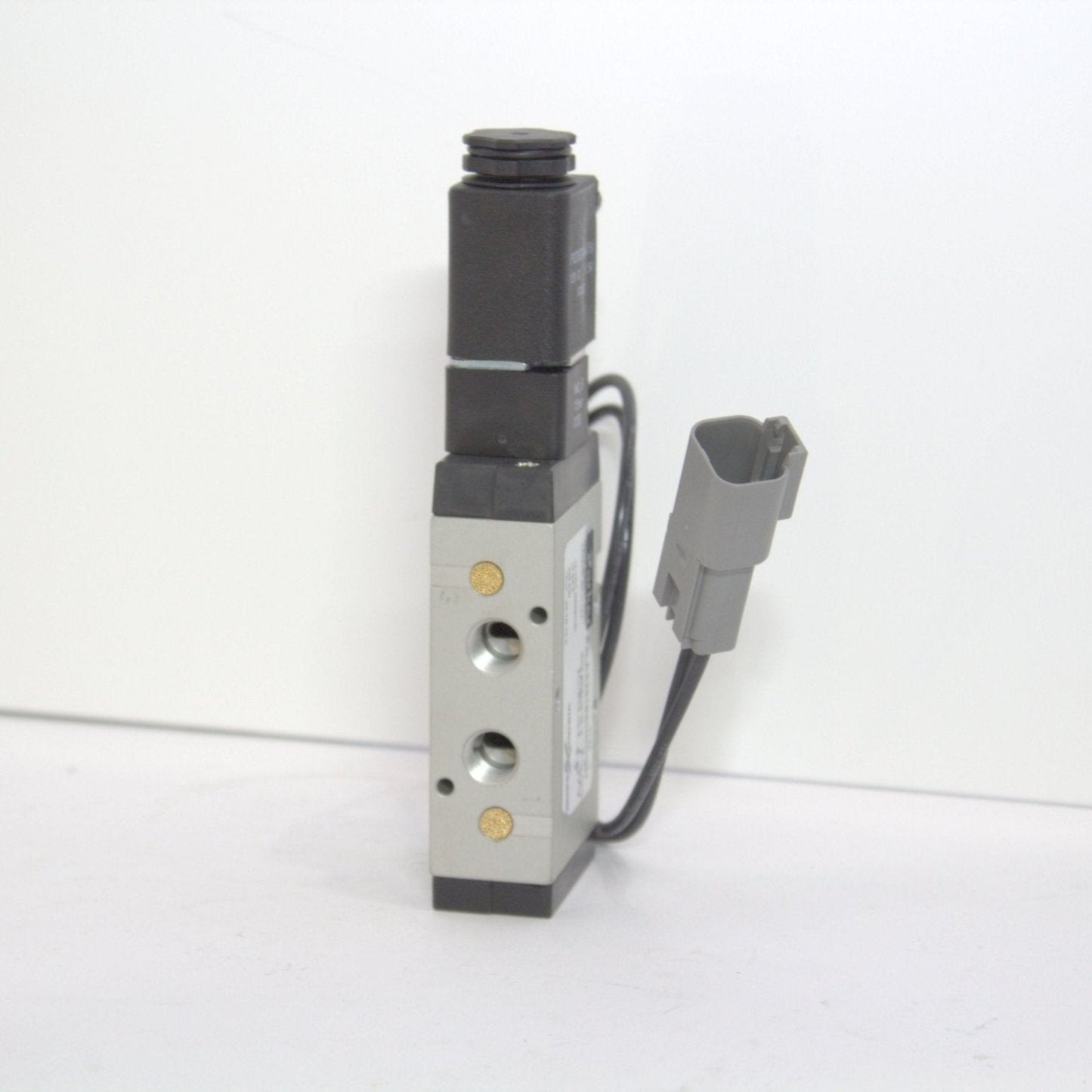

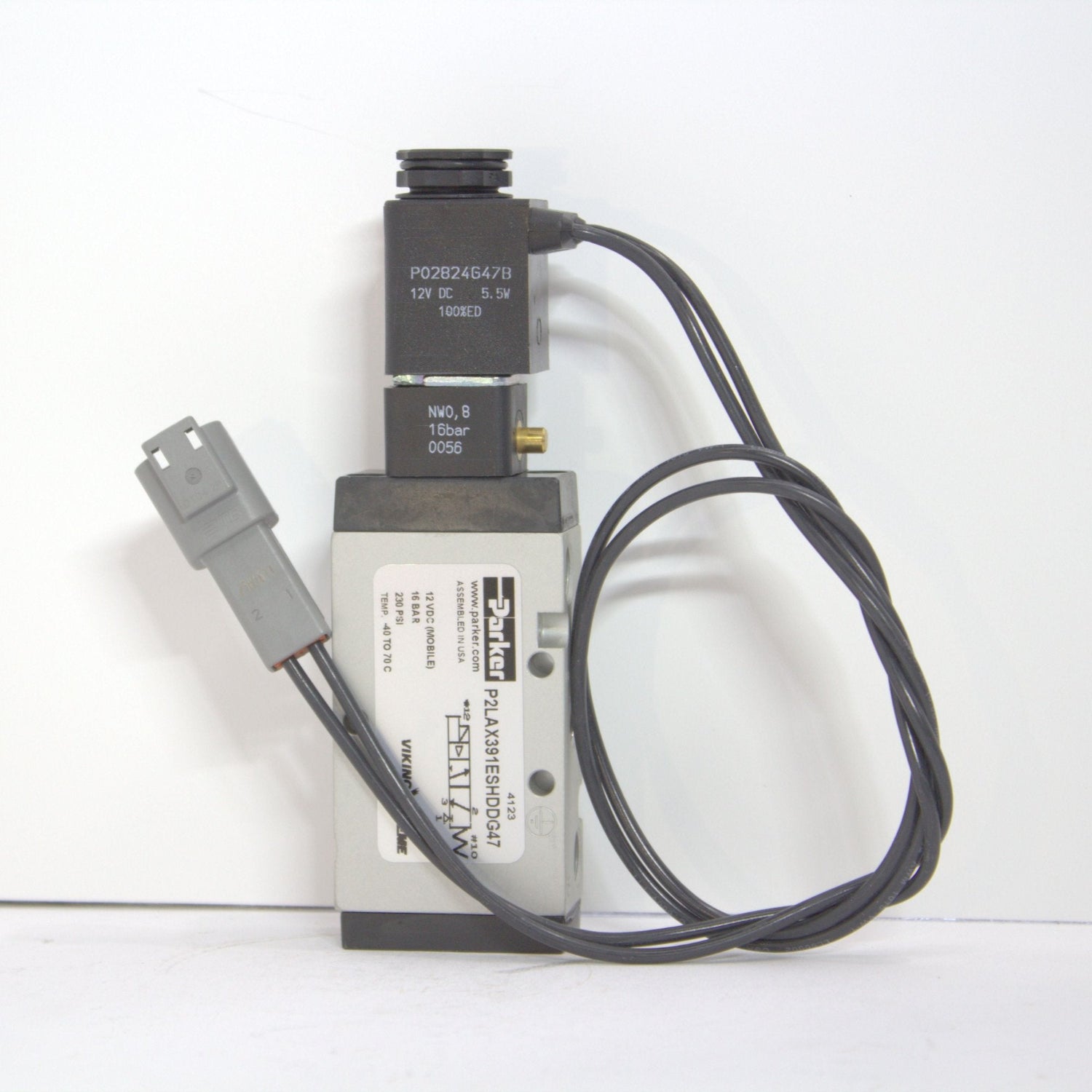

Parker Free-Wheel Solenoid Valve 3/2

Description

This Parker valve is a 3/2 NC-2-POSITION valve with a 1/8 inch size and 1/8 inch NPT. It can handle 232 PSIG/14 to 122 DEG F vacuum pressure and features a single solenoid spring return. The extended non-locking grommet and vented pilot exhaust make it ideal for mobile use. It is designed to engage and disengage the winch free-wheel with 12 VDC.

MFG #: P2LAX391ESHDDG47

Specifications

Solenoid: 18' Grommet
Port Size (NPT): 1/8"
Cv: 0.7
Valve Type: P2LAX
Response time (msec): 15/45
Response Time: Actuate to 90% pressure/ return to exhaust to 10% of supply pressure. 93 PSIG/ temperature 68°
Weight (lbs): 0.84
Voltage: 12VDC
