Yoke X-026-13 1/2" Grade 100 Clevis Self-Locking Hook
$197.98 USD
Skip to product information
SKU:
X-026-13
Out of stock
Yoke X-026-13 1/2" Grade 100 Clevis Self-Locking Hook
Compatible With:
Not Model Specific
Qualifies for Free Shipping on orders $200+
Enjoy free standard ground shipping on orders of $200 or more within the 48 contiguous states.
Some items may require special handling fees. Orders under $200, or containing oversized or 75+ lb items, will include additional shipping charges.
Have questions? Contact our parts department—we’re happy to help.
$197.98 USD
Shipping calculated at checkout.
Yoke X-026-13 1/2" Grade 100 Clevis Self-Locking Hook
The X-026-13 is a Yoke Grade 100 clevis self-locking hook that connects directly to 1/2" G100 chain through an integrated clevis pin — no extra coupling links. Quenched and tempered alloy steel, 4:1 design factor, about 25% more capacity than comparable Grade 80 hardware.
- WLL: 6.7 tons (14,771 lb)
- Automatic latch: locks under load to prevent accidental unhooking during lifting, recovery, or load control; releases manually for positive control on connect and disconnect
- Standards & testing: meets EN 1677-3 and ASME B30.26; proof tested to 2.5× WLL, fatigue rated to 20,000 cycles at 1.5× WLL, batch traceable
Built for the load end of single- and multi-leg G100 chain slings — construction, fabrication, industrial lifting, and heavy-duty recovery rigs stepping up to Grade 100.
- 1/2" Grade 100 clevis self-locking hook designed for direct attachment to 1/2" G100 chain.
- Working Load Limit: 14,771 lb (6.7 tons) with minimum breaking strength of 60,000 lb.
- Automatic self-locking latch closes under load and must be manually released when unloaded for controlled disengagement.
- Quenched and tempered Grade 100 alloy steel construction, painted blue for easy identification.
- At least 25% greater WLL than traditional Grade 80 hooks of the same chain size.
- Meets EN 1677-3 and ASME B30.26 (and related ASME B30.10 / PAS 1061) lifting hardware standards.
- Proof tested at 2.5× WLL and fatigue rated to 20,000 cycles at 1.5× WLL; 4:1 design (safety) factor.
- Commonly used at the load end of Grade 100 chain slings in construction, industrial lifting, fabrication and maintenance.
-
Manufacturer / Model: Yoke X-026-13, G-100 Clevis Self-Locking Hook
-
Grade: 100 alloy steel
-

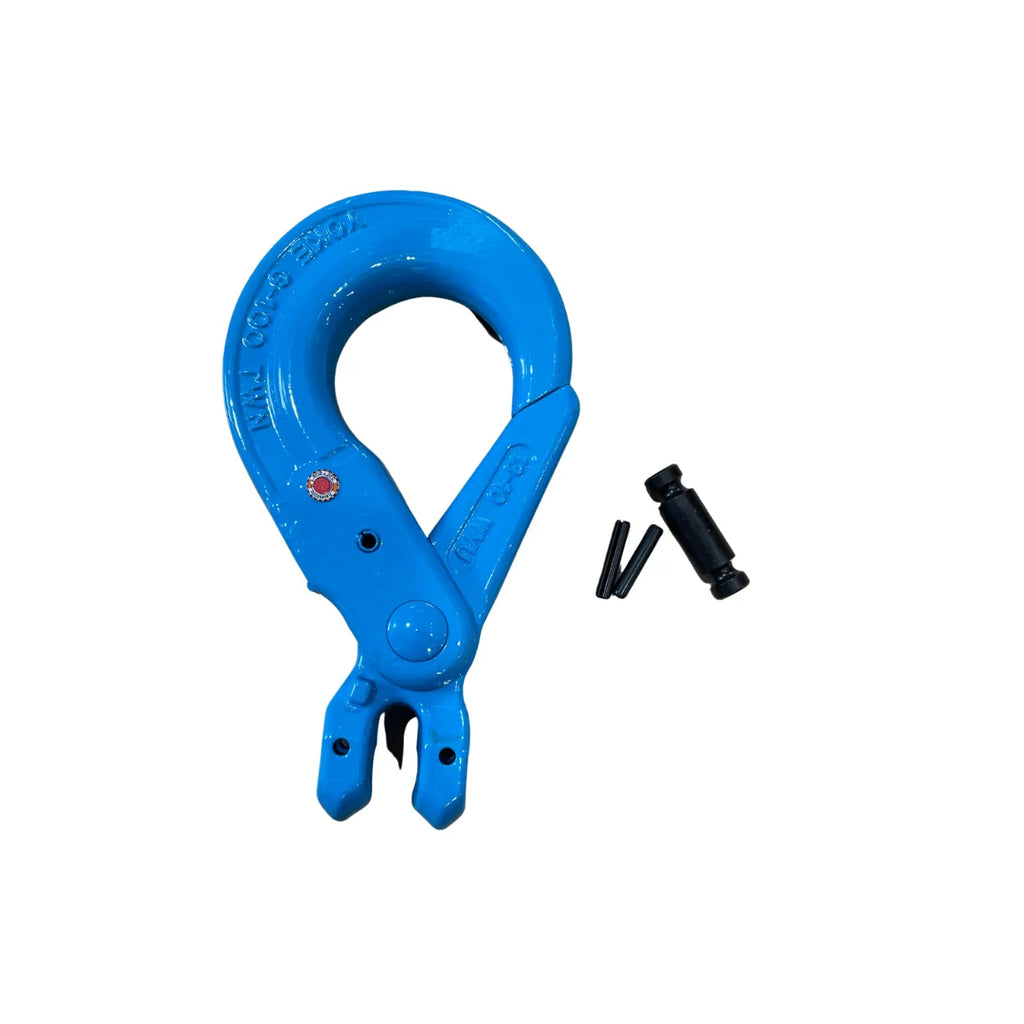

Attachment type: Clevis (includes clevis pin and cotter/retaining pin)
-
Trade size / chain size: 1/2" for use with 1/2" Grade 100 chain (or lower grade chain up to the same WLL)
-
Working Load Limit (WLL): 14,771 lb (6.7 tons)
-
Design factor: 4:1
-
Minimum breaking strength: 60,000 lb
-
Overall length: Approximately 7.0" usable length (manufacturer K dimension 7.01")
-
Approximate weight: 6.6 lb (per hook)
-
Material & finish: Quenched and tempered Grade 100 alloy steel, blue painted
-
Standards / compliance: EN 1677-3, ASME B30.26; also referenced to ASME B30.10 and PAS1061; batch traceable and proof tested
-
Performance testing: Proof tested at 2.5× WLL; fatigue rated to 20,000 cycles at 1.5× WLL
